Nginx 監控模塊(vts模塊)

監控Nginx主要用到以下三個模塊：
1、nginx-module-vts：Nginx virtual host traffic status module，Nginx的監控模塊，能夠提供JSON格式的數據產出。
2、nginx-vts-exporter：Simple server that scrapes Nginx vts stats and exports them via HTTP for Prometheus consumption。主要用于收集Nginx的監控?cái)?shù)據，并給Prometheus提供監控接口，默認端口號9913。
3、Prometheus：監控Nginx-vts-exporter提供的Nginx數據，并存儲在時序數據庫中，可以使用PromQL對時序數據進行查詢和聚合。

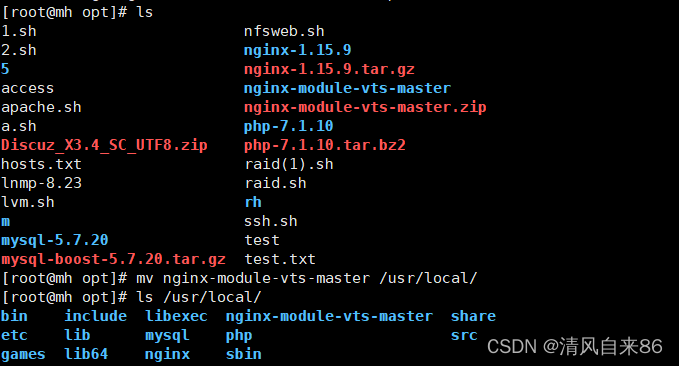

1、上傳nginx-module-vts-master軟件包并解壓

unzip nginx-module-vts-master.zip 解壓

2、安裝Nginx依賴環境

yum -y install gcc gcc-c++ pcre pcre-devel zlib zlib-devel openssl openssl-devel

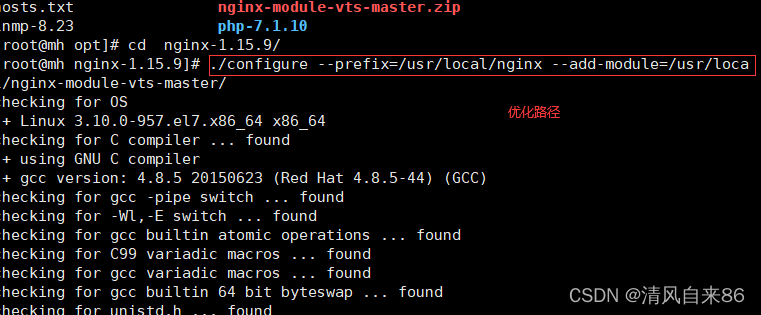

3、優化路徑及編譯安裝nginx

 make && make install

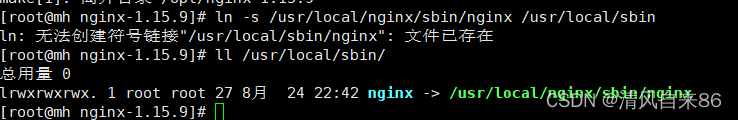

優化管理

ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin

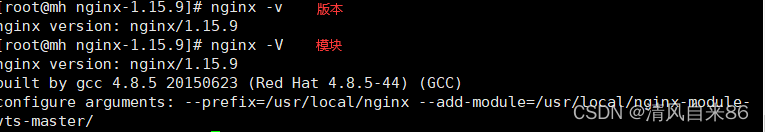

檢查開啟的模塊

nginx -v? 檢查 nginx版本nginx -V

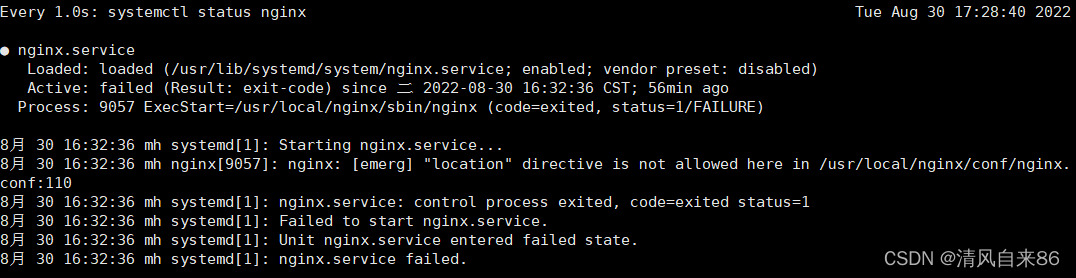

watch -n 1 nginx 觀察nginx狀態

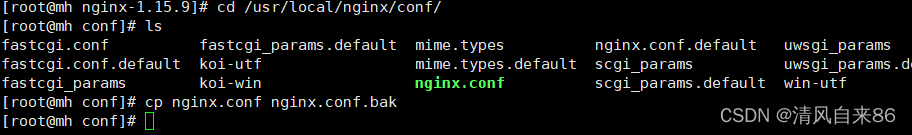

4、備份nginx的備份文件

5、修改nginx的配置文件

systemctl stop firewalld
systemctl disable firewalld
setenforce 0

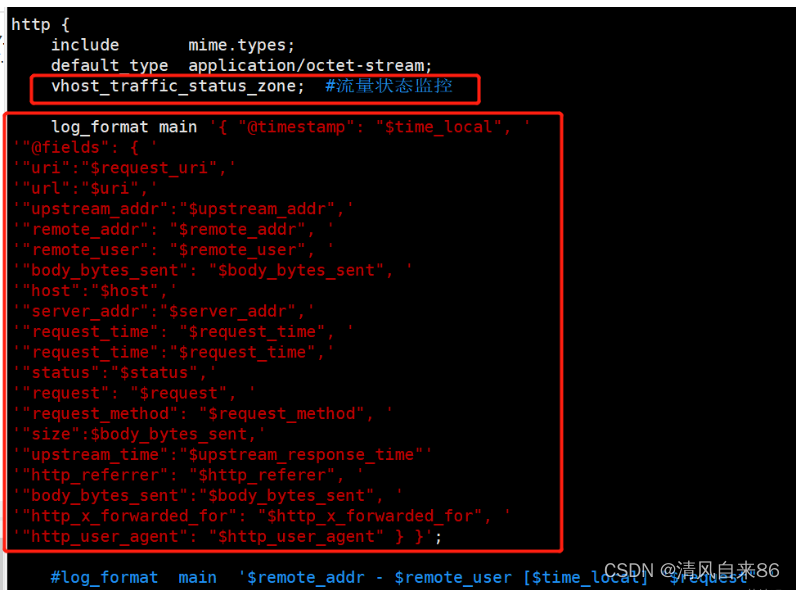

進去后再http{ } 中添加如下內容

vhost_traffic_status_zone;?? ??? ??? ?#流量狀態監控?log_format main "{ "@timestamp": "$time_local", """@fields": { """uri":"$request_uri","""url":"$uri","""upstream_addr":"$upstream_addr","""remote_addr": "$remote_addr", """remote_user": "$remote_user", """body_bytes_sent": "$body_bytes_sent", """host":"$host","""server_addr":"$server_addr","""request_time": "$request_time", """request_time":"$request_time","""status":"$status","""request": "$request", """request_method": "$request_method", """size":$body_bytes_sent,"""upstream_time":"$upstream_response_time""""http_referrer": "$http_referer", """body_bytes_sent":"$body_bytes_sent", """http_x_forwarded_for": "$http_x_forwarded_for", """http_user_agent": "$http_user_agent" } }";

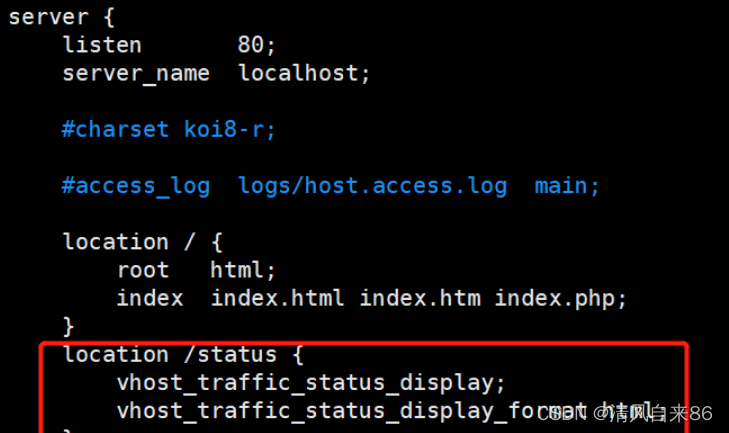

在server中80端口添加

 location /status {<!--{C}%3C!%2D%2D%20%2D%2D%3E-->    vhost_traffic_status_display;    vhost_traffic_status_display_format html;}

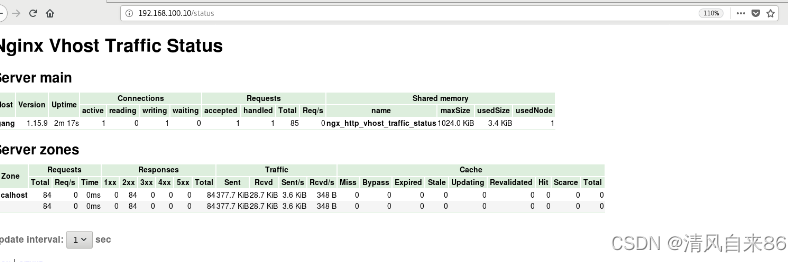

在虛擬機中測試 192.168.100.10/status

6、監控模塊各字段信

監控列表各項信息
Server main 主服務器
**Host：**主機名
**Version：**版本號
**Uptime：**服務器運行時間
Connections active：當前客戶端的連接數 reading：讀取客戶端連接的總數 writing：寫入客戶端連接的總數
Requsts accepted：接收客戶端的連接總數 handled：已處理客戶端的連接總數 Total：請求總數 Req/s：每秒請求的數量
Shared memory：共享內存 name：配置中指定的共享內存名稱 maxSize：配置中指定的共享內存的最大限制 usedSize：共享內存的當前大小 usedNode：共享內存中當前使用的節點數
Server zones 服務器區域
zone：當前區域
Requests Total：請求總數 Req/s：每秒請求數 time：時間
Responses：狀態碼數量 1xx、2xx、3xx、4xx、5xx：表示響應不同狀態碼數量 Total：響應狀態碼的總數
Traffic表示流量 Sent：發送的流量 Rcvd：接收的流量 Sent/s：每秒發送的流量 Rcvd/s：每秒接收的流量
Cache表示緩存 Miss：未命中的緩存數 Bypass：避開的緩存數 Expirde：過期的緩存數 Stale：生效的緩存數 Updating：緩存更新的次數 Revalidated：重新驗證的緩存書 Hit：緩存命中數 Scarce：未達緩存要求的請求次數Total：總數

7、一鍵安裝vts監控模塊

#!/bin/bashecho "提前準備好安裝包如：nginx-1.15.9.tar.gz? nginx-module-vts-master.zip"##關閉防火墻及核心防護systemctl stop firewalldsystemctl disable firewalldsetenforce 0#刪除原有的nginxrm -rf /var/run/yum.pid##安裝依賴包yum -y install gcc gcc-c++ pcre-devel zlib-devel make pcre zlib?openssl openssl-devel#解包tar zxvf nginx-1.15.9.tar.gzunzip nginx-module-vts-master.zip#創建運行用戶、組useradd -M -s /sbin/nologin nginx?##編譯cd /opt/nginx-1.15.9/./configure \--prefix=/usr/local/nginx \--user=nginx \--group=nginx \--add-module=/usr/local/nginx-module-vts-master/? #vts模塊#--with-http_stub_status_module? 統計模塊#安裝?make && make install#優化路徑ln -s /usr/local/nginx/sbin/* /usr/local/sbin/#查看nginx安裝信息nginx -V#把nginx的加入到systemctl管理中cat<<EOF >/usr/lib/systemd/system/nginx.service[Unit]?? ?Description=nginx?? ??? ??? ??? ??? ??? ??? ?After=network.target?? ??? ??? ??? ??? ??? ?[Service]Type=forking?? ??? ??? ??? ??? ??? ??? ??? ?PIDFile =/usr/local/nginx/logs/nginx.pid?? ?ExecStart=/usr/local/nginx/sbin/nginx?? ??? ?ExecrReload=/bin/kill -s HUP $MAINPID?? ??? ?ExecrStop=/bin/kill -s QUIT $MAINPID?? ??? ?PrivateTmp=true[Install]WantedBy=multi-user.targetEOF#給權限chmod 754 /lib/systemd/system/nginx.service#備份nginx配置文件?cp /usr/local/nginx/conf/nginx.conf /usr/local/nginx/conf/nginx.conf.bak#修改nginx的配置文件sed -i "21i vhost_traffic_status_zone; #流量狀態監控" /usr/local/nginx/conf/nginx.confsed -i "/#log_format ?main/i log_format main "{ "@timestamp": "$time_local", """@fields": { """uri":"$request_uri","""url":"$uri","""upstream_addr":"$upstream_addr","""remote_addr": "$remote_addr", """remote_user": "$remote_user", """body_bytes_sent": "$body_bytes_sent", """host":"$host","""server_addr":"$server_addr","""request_time": "$request_time", """request_time":"$request_time","""status":"$status","""request": "$request", """request_method": "$request_method", """size":$body_bytes_sent,"""upstream_time":"$upstream_response_time""""http_referrer": "$http_referer", """body_bytes_sent":"$body_bytes_sent", """http_x_forwarded_for": "$http_x_forwarded_for", """http_user_agent": "$http_user_agent" } }";" /usr/local/nginx/conf/nginx.confsed -i "/server_name ?localhost;/a location /status {????????????vhost_traffic_status_display;????????????vhost_traffic_status_display_format html;????????}" /usr/local/nginx/conf/nginx.conf#重啟nginxsystemctl restart nginx &> /dev/null#測試 ? 本機ip/status
