前言

在使用Spring和SpringMVC的老版本進行開發時，我們需要配置很多的xml文件，非常的繁瑣，總是讓用戶自行選擇配置也是非常不好的?；诩s定大于配置的規定，Spring提供了很多注解幫助我們簡化了大量的xml配置；但是在使用SpringMVC時，我們還會使用到WEB-INF/web.xml，但實際上我們是完全可以使用Java類來取代xml配置的，這也是后來SpringBoott的實現原理。本篇就來看看Spring是如何實現完全的零XML配置。

正文

先來看一下原始的web.xml配置：

<!DOCTYPE web-app PUBLIC '-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN' 'http://java.sun.com/dtd/web-app_2_3.dtd' ><web-app> <context-param> <param-name>contextConfigLocation</param-name> <param-value> <!--加載spring配置--> classpath:spring.xml </param-value> </context-param> <context-param> <param-name>webAppRootKey</param-name> <param-value>ServicePlatform.root</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> <!--<listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>--> </listener> <servlet> <servlet-name>spring-dispatcher</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <!--springmvc的配置文件--> <param-name>contextConfigLocation</param-name> <param-value>classpath:spring-dispatcher.xml</param-value> </init-param> <load-on-startup>0</load-on-startup> </servlet> <servlet-mapping> <servlet-name>spring-dispatcher</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping></web-app>

這里各個配置的作用簡單說下，context-param是加載我們主的sping.xml配置，比如一些bean的配置和開啟注解掃描等；listener是配置監聽器，Tomcat啟動會觸發監聽器調用；servlet則是配置我們自定義的Servlet實現，比如DispatcherServlet。還有其它很多配置就不一一說明了，在這里主要看到記住context-param和servlet配置，這是SpringIOC父子容器的體現。

在之前的I文章中講過IOC容器是以父子關系組織的，但估計大部分人都不能理解，除了看到復雜的繼承體系，并沒有看到父容器作用的體現，稍后來分析。

了解了配置，我們就需要思考如何替換掉這些繁瑣的配置。實際上Tomcat提供了一個規范，有一個ServletContainerInitializer接口：

public interface ServletContainerInitializer { void onStartup(Set<Class<?>> var1, ServletContext var2) throws ServletException;}

Tomcat啟動時會調用該接口實現類的onStartup方法，這個方法有兩個參數，第二個不用說，主要是第一個參數什么？從哪里來？另外我們自定義的實現類又怎么讓Tomcat調用呢？

首先解答最后一個問題，這里也是利用SPI來實現的，因此我們實現了該接口后，還需要在META-INF.services下配置。其次，這里傳入的第一個參數也是我們自定義的擴展接口的實現類，我們可以通過我們自定義的接口實現很多需要在啟動時做的事，比如加載Servlet，但是Tomcat又是怎么知道我們自定義的接口是哪個呢？

這就需要用到@HandlesTypes注解，該注解就是標注在ServletContainerInitializer的實現類上，其值就是我們擴展的接口，這樣Tomcat就知道需要傳入哪個接口實現類到這個onStartup方法了。

來看一個簡單的實現：

@HandlesTypes(LoadServlet.class)public class MyServletContainerInitializer implements ServletContainerInitializer { @Override public void onStartup(Set<Class<?>> set, ServletContext servletContext) throws ServletException { Iterator var4; if (set != null) { var4 = set.iterator(); while (var4.hasNext()) {Class<?> clazz = (Class<?>) var4.next();if (!clazz.isInterface() && !Modifier.isAbstract(clazz.getModifiers()) && LoadServlet.class.isAssignableFrom(clazz)) { try { ((LoadServlet) clazz.newInstance()).loadOnstarp(servletContext); } catch (Exception e) { e.printStackTrace(); }} } } }}public interface LoadServlet { void loadOnstarp(ServletContext servletContext);}public class LoadServletImpl implements LoadServlet { @Override public void loadOnstarp(ServletContext servletContext) { ServletRegistration.Dynamic initServlet = servletContext.addServlet('initServlet', 'org.springframework.web.servlet.DispatcherServlet'); initServlet.setLoadOnStartup(1); initServlet.addMapping('/init'); }}

這就是Tomcat給我們提供的規范，通過這個規范我們就能實現Spring的零xml配置啟動，直接來看Spring是如何做的。根據上面所說我們可以在spring-web工程下找到META-INF/services/javax.servlet.ServletContainerInitializer配置：

@HandlesTypes(WebApplicationInitializer.class)public class SpringServletContainerInitializer implements ServletContainerInitializer { @Override public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext) throws ServletException { List<WebApplicationInitializer> initializers = new LinkedList<>(); if (webAppInitializerClasses != null) { for (Class<?> waiClass : webAppInitializerClasses) { // Be defensive: Some servlet containers provide us with invalid classes, // no matter what @HandlesTypes says... if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) && WebApplicationInitializer.class.isAssignableFrom(waiClass)) { try { initializers.add((WebApplicationInitializer) ReflectionUtils.accessibleConstructor(waiClass).newInstance()); } catch (Throwable ex) { throw new ServletException('Failed to instantiate WebApplicationInitializer class', ex); } } } } if (initializers.isEmpty()) { servletContext.log('No Spring WebApplicationInitializer types detected on classpath'); return; } servletContext.log(initializers.size() + ' Spring WebApplicationInitializers detected on classpath'); AnnotationAwareOrderComparator.sort(initializers); for (WebApplicationInitializer initializer : initializers) { initializer.onStartup(servletContext); } }}

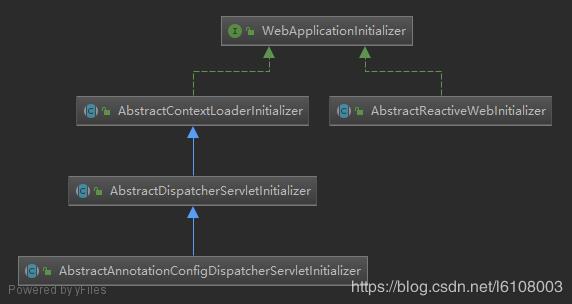

核心的實現就是WebApplicationInitializer，先看看其繼承體系

AbstractReactiveWebInitializer不用管，主要看另外一邊，但是都是抽象類，也就是說真的實例也是由我們自己實現，但需要我們實現什么呢？我們一般直接繼承AbstractAnnotationConfigDispatcherServletInitializer類，有四個抽象方法需要我們實現：

//父容器 @Override protected Class<?>[] getRootConfigClasses() { return new Class<?>[]{SpringContainer.class}; } //SpringMVC配置子容器 @Override protected Class<?>[] getServletConfigClasses() { return new Class<?>[]{MvcContainer.class}; } //獲取DispatcherServlet的映射信息 @Override protected String[] getServletMappings() { return new String[]{'/'}; } // filter配置 @Override protected Filter[] getServletFilters() { MyFilter myFilter = new MyFilter(); CorsFilter corsFilter = new CorsFilter(); return new Filter[]{myFilter,corsFilter}; }

這里主要注意getRootConfigClasses和getServletConfigClasses方法，分別加載父、子容器：

@ComponentScan(value = 'com.dark',excludeFilters = { @ComponentScan.Filter(type = FilterType.ANNOTATION,classes = {Controller.class})})public class SpringContainer {}@ComponentScan(value = 'com.dark',includeFilters = { @ComponentScan.Filter(type = FilterType.ANNOTATION,classes = {Controller.class})},useDefaultFilters = false)public class MvcContainer {}

看到這兩個類上的注解應該不陌生了吧，父容器掃描裝載了所有不帶@Controller注解的類，子容器則相反，但需要對象時首先從當前容器中找，如果沒有則從父容器中獲取，為什么要這么設計呢？

直接放到一個容器中不行么？先思考下， 稍后解答?；氐給nStartup方法中，直接回調用到AbstractDispatcherServletInitializer類：

public void onStartup(ServletContext servletContext) throws ServletException { super.onStartup(servletContext); //注冊DispatcherServlet registerDispatcherServlet(servletContext); }

先是調用父類：

public void onStartup(ServletContext servletContext) throws ServletException { registerContextLoaderListener(servletContext); } protected void registerContextLoaderListener(ServletContext servletContext) { //創建spring上下文，注冊了SpringContainer WebApplicationContext rootAppContext = createRootApplicationContext(); if (rootAppContext != null) { //創建監聽器 ContextLoaderListener listener = new ContextLoaderListener(rootAppContext); listener.setContextInitializers(getRootApplicationContextInitializers()); servletContext.addListener(listener); } }

然后調用createRootApplicationContext創建父容器：

protected WebApplicationContext createRootApplicationContext() { Class<?>[] configClasses = getRootConfigClasses(); if (!ObjectUtils.isEmpty(configClasses)) { AnnotationConfigWebApplicationContext context = new AnnotationConfigWebApplicationContext(); context.register(configClasses); return context; } else { return null; } }

可以看到就是創建了一個AnnotationConfigWebApplicationContext對象，并將我們的配置類SpringContainer注冊了進去。接著創建Tomcat啟動加載監聽器ContextLoaderListener，該監聽器有一個contextInitialized方法，會在Tomcat啟動時調用。

public void contextInitialized(ServletContextEvent event) { initWebApplicationContext(event.getServletContext()); } */ public WebApplicationContext initWebApplicationContext(ServletContext servletContext) { long startTime = System.currentTimeMillis(); try { // Store context in local instance variable, to guarantee that // it is available on ServletContext shutdown. if (this.context == null) { this.context = createWebApplicationContext(servletContext); } if (this.context instanceof ConfigurableWebApplicationContext) { ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context; if (!cwac.isActive()) { // The context has not yet been refreshed -> provide services such as // setting the parent context, setting the application context id, etc if (cwac.getParent() == null) { // The context instance was injected without an explicit parent -> // determine parent for root web application context, if any. ApplicationContext parent = loadParentContext(servletContext); cwac.setParent(parent); } configureAndRefreshWebApplicationContext(cwac, servletContext); } } servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.context); ClassLoader ccl = Thread.currentThread().getContextClassLoader(); if (ccl == ContextLoader.class.getClassLoader()) { currentContext = this.context; } else if (ccl != null) { currentContextPerThread.put(ccl, this.context); } return this.context; } }

可以看到就是去初始化容器，這個和之前分析xml解析是一樣的，主要注意這里封裝了ServletContext對象，并將父容器設置到了該對象中。

父容器創建完成后自然就是子容器的創建，來到registerDispatcherServlet方法：

protected void registerDispatcherServlet(ServletContext servletContext) { String servletName = getServletName(); Assert.hasLength(servletName, 'getServletName() must not return null or empty'); //創建springmvc的上下文，注冊了MvcContainer類 WebApplicationContext servletAppContext = createServletApplicationContext(); Assert.notNull(servletAppContext, 'createServletApplicationContext() must not return null'); //創建DispatcherServlet FrameworkServlet dispatcherServlet = createDispatcherServlet(servletAppContext); Assert.notNull(dispatcherServlet, 'createDispatcherServlet(WebApplicationContext) must not return null'); dispatcherServlet.setContextInitializers(getServletApplicationContextInitializers()); ServletRegistration.Dynamic registration = servletContext.addServlet(servletName, dispatcherServlet); if (registration == null) { throw new IllegalStateException('Failed to register servlet with name ’' + servletName + '’. ' + 'Check if there is another servlet registered under the same name.'); } /* * 如果該元素的值為負數或者沒有設置，則容器會當Servlet被請求時再加載。 如果值為正整數或者0時，表示容器在應用啟動時就加載并初始化這個servlet， 值越小，servlet的優先級越高，就越先被加載 * */ registration.setLoadOnStartup(1); registration.addMapping(getServletMappings()); registration.setAsyncSupported(isAsyncSupported()); Filter[] filters = getServletFilters(); if (!ObjectUtils.isEmpty(filters)) { for (Filter filter : filters) { registerServletFilter(servletContext, filter); } } customizeRegistration(registration); } protected WebApplicationContext createServletApplicationContext() { AnnotationConfigWebApplicationContext context = new AnnotationConfigWebApplicationContext(); Class<?>[] configClasses = getServletConfigClasses(); if (!ObjectUtils.isEmpty(configClasses)) { context.register(configClasses); } return context; }

這里也是創建了一個AnnotationConfigWebApplicationContext對象，不同的只是這里注冊的配置類就是我們的Servlet配置了。然后創建了DispatcherServlet對象，并將上下文對象設置了進去。

看到這你可能會疑惑，既然父子容器創建的都是相同類的對象，何來的父子容器之說？

別急，這個在初始化該上文時就明白了。但是這里的初始化入口在哪呢？沒有看到任何監聽器的創建和調用。

實際上這里的上下文對象初始化是在Servlet初始化時實現的，即init方法，直接來到HttpServletBean的init方法（分析SpringMVC源碼時講過）：

public final void init() throws ServletException { ...省略 // Let subclasses do whatever initialization they like. initServletBean(); } protected final void initServletBean() throws ServletException { try { this.webApplicationContext = initWebApplicationContext(); initFrameworkServlet(); } } protected WebApplicationContext initWebApplicationContext() { //這里會從servletContext中獲取到父容器，就是通過監聽器加載的容器 WebApplicationContext rootContext = WebApplicationContextUtils.getWebApplicationContext(getServletContext()); WebApplicationContext wac = null; if (this.webApplicationContext != null) { // A context instance was injected at construction time -> use it wac = this.webApplicationContext; if (wac instanceof ConfigurableWebApplicationContext) { ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac; if (!cwac.isActive()) { if (cwac.getParent() == null) { cwac.setParent(rootContext); } //容器加載 configureAndRefreshWebApplicationContext(cwac); } } } if (wac == null) { wac = findWebApplicationContext(); } if (wac == null) { wac = createWebApplicationContext(rootContext); } if (!this.refreshEventReceived) { synchronized (this.onRefreshMonitor) { onRefresh(wac); } } if (this.publishContext) { // Publish the context as a servlet context attribute. String attrName = getServletContextAttributeName(); getServletContext().setAttribute(attrName, wac); } return wac; }

看到這里想你也應該明白了，首先從ServletContext中拿到父容器，然后設置到當前容器的parent中，實現了父子容器的組織，而這樣設計好處我想也是很清楚的，子容器目前裝載的都是MVC的配置和Bean，簡單點說就是Controller，父容器中都是Service，Controller是依賴于Service的，如果不構建這樣的層級關系并優先實例化父容器，你怎么實現Controller層的依賴注入成功呢？

總結

本篇結合之前的文章，分析了SpringMVC零XML配置的實現原理，也補充了之前未分析到父子容器關系，讓我們能從細節上更加全面的理解SpringIOC的實現原理，相信看完本篇對于SpringBoot的實現你也會有自己的想法。希望能給大家一個參考，也希望大家多多支持好吧啦網。
