樣式效果

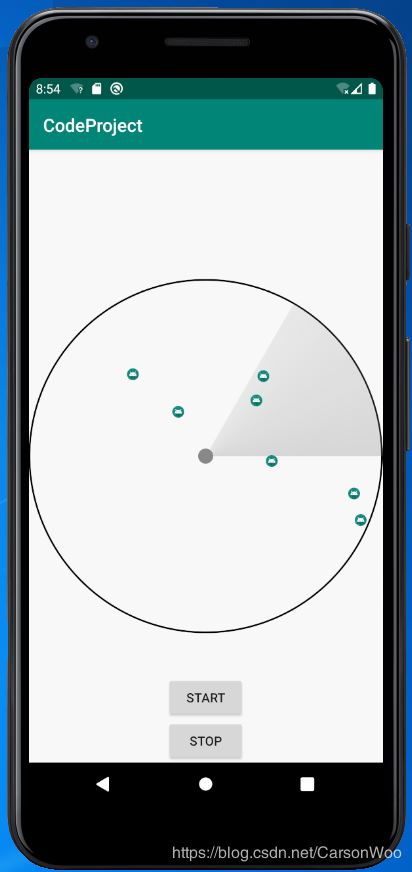

還是先來看效果：

這是一個仿雷達掃描的效果，是之前在做地圖sdk接入時就想實現的效果，但之前由于趕著畢業設計，就沒有親手去實現，不過現在自己擼一個發現還是挺簡單的。

這里主要分享一下我的做法。

目錄

主體輪廓的實現（雷達的結構）

動畫的實現（雷達掃描的效果）

目標點的加入（圖片/點）

主體輪廓實現

不難分析得出，這個View主要由外部的一個圓，中間的錨點圓以及扇形旋轉區域組成。而且每個部分理應由不同的Paint去繪制，以方便去定制各部分的樣式。

外部圓以及錨點圓的繪制較為簡單，主要的點還是要對整個View的寬高進行一定的限制，例如寬高必須相等且在某種模式下，取小的那個值來限定整個RadarView的最大值。那么該如何去控制呢？

onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int)

由于我們繼承自View，在onMeasure方法中，我們可以根據兩個參數來獲取Mode，并且根據Mode來指定寬/高對應的值，再通過setMeasuredDimension去指定控件主體的寬高即可。

override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) { super.onMeasure(widthMeasureSpec, heightMeasureSpec) val vWidth = measureDimension(widthMeasureSpec) val vHeight = measureDimension(heightMeasureSpec) val size = min(vWidth, vHeight) setMeasuredDimension(size, size)} private fun measureDimension(spec: Int) = when (MeasureSpec.getMode(spec)) { MeasureSpec.EXACTLY -> { // exactly number or match_parent MeasureSpec.getSize(spec) } MeasureSpec.AT_MOST -> { // wrap_content min(mDefaultSize, MeasureSpec.getSize(spec)) } else -> { mDefaultSize }}

測量工作完成了，我們自然可以去繪制了。為了不讓中間的小圓看起來那么突兀（偏大或偏小），這里設置了一個scaleFactor的縮放因子，使其能根據外圓的尺寸來進行縮放。

override fun onDraw(canvas: Canvas?) { super.onDraw(canvas) // draw outside circle (background) canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2, mOutlinePaint) if (mBorderWidth > 0F && mOutlinePaint.shader == null) { drawBorder(canvas) } // mOutlineRect = Rect(0, 0, measuredWidth, measuredHeight) canvas?.drawArc(mOutlineRect.toRectF(), mStartAngle, mSweepAngle, true, mSweepPaint) // draw center circle // scaleFactor = 30F canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2 / mScaleFactor, mPaint)} private fun drawBorder(canvas: Canvas?) { Log.i('RadarView', 'drawBorder') mOutlinePaint.style = Paint.Style.STROKE mOutlinePaint.color = mBorderColor mOutlinePaint.strokeWidth = mBorderWidth canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, (measuredWidth.toFloat() - mBorderWidth) / 2, mOutlinePaint) // 還原 mOutlinePaint.style = Paint.Style.FILL_AND_STROKE mOutlinePaint.color = mBackgroundColor}

繪制了基準圓以后，要實現雷達掃描時那種漸變的效果，我們可以通過SweepGradient來操作。通過指定中心點，漸變顏色，以及顏色的分布，來定制掃描漸變的樣式，默認的即時開頭時gif展示的那種。由于這里是從第一象限開始旋轉，因此將旋轉的起點通過matrix逆時針旋轉90度，從而達到由淺入深的效果。

private fun setShader(size: Int) { val shader = SweepGradient(size.toFloat() / 2, size.toFloat() / 2, mScanColors?: mDefaultScanColors, // 可通過setScanColors()來定制顏色 floatArrayOf(0F, 0.5F, 1F)) // 這里默認走平均分布 val matrix = Matrix() // 逆時針旋轉90度 matrix.setRotate(-90F, size.toFloat() / 2, size.toFloat() / 2) shader.setLocalMatrix(matrix) mSweepPaint.shader = shader}

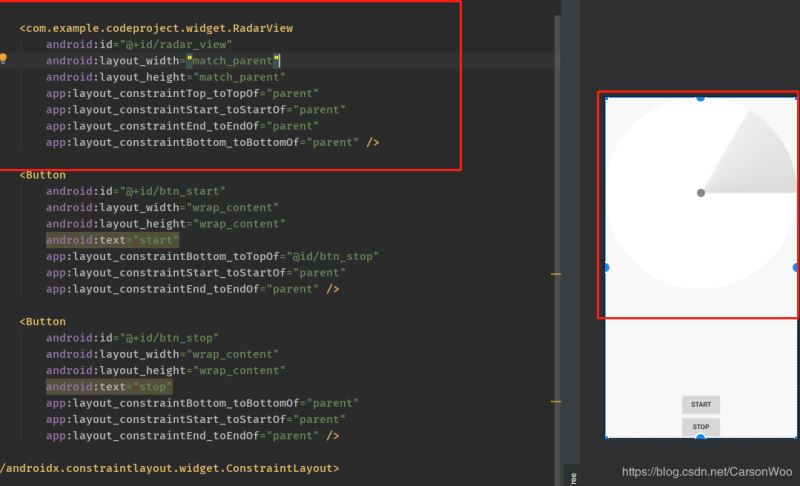

這里完成了測量與繪制的工作，那么我們在布局里引用以后，就會看到這樣的效果：

這時，由于我們之前在測量的時候，將寬高最小值作為繪制的基準大小給予了RadarView，因此measuredWidth和measuredHeight是相等的，但是由于在布局中指定了match_parent屬性，那么實際的控件寬高還是和父布局一致（在這里即占滿屏幕寬高，由于寬比高小，所以看到繪制的圖形會偏向上方；如果設置了高比寬小，那么繪制的圖形就會位于左側）。一般的雷達控件應該都是居中顯示的，所以我在這里也重寫了onLayout方法，來實現居中的效果。

override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) { // 設置默認居中 var l = left var r = right var t = top var b = bottom when { width > height -> { // 寬度比高度大 那么要設置默認居中就得把left往右移 right往左移 l = (width - measuredWidth) / 2 r = width - l layout(l, t, r, b) } height > width -> { // 高度比寬度大 那么要設置默認居中就得把top往下移 bottom往上移 t = (height - measuredHeight) / 2 b = height - t layout(l, t, r, b) } else -> super.onLayout(changed, left, top, right, bottom) }}

動畫的實現

完成了繪制，接下來就是思考該如何讓他動起來了。由繪制的代碼不難想到，我這里考慮的是通過mStartAngle的變化來控制繪制的角度旋轉，而ValueAnimator則正好能獲取到每次更新時value的值，因此這里我選用了這個方案。

fun start() { Log.i('RadarView', 'animation start') mIsAnimating = true mAnimator.duration = 2000 mAnimator.repeatCount = ValueAnimator.INFINITE mAnimator.addUpdateListener { val angle = it.animatedValue as Float mStartAngle = angle // Log.i('RadarView', 'mStartAngle = $mStartAngle and curValue = ${it.animatedValue}') postInvalidate() } mAnimator.start()}

坑

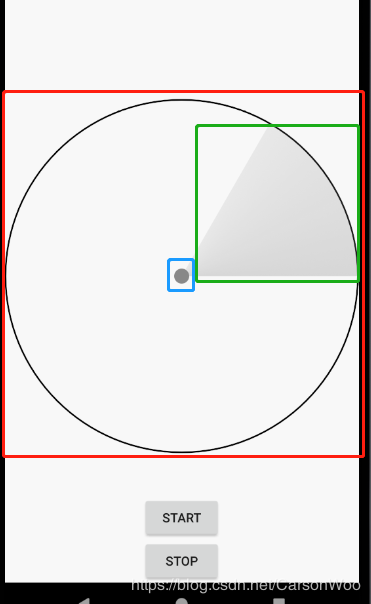

這里就需要注意一個點，就是canvas在繪制時，后繪制的會覆蓋在前繪制的圖像上，所以需要注意繪制的順序。當然，這里也可以把mOutlineRect的寬高設置為measuredWidth - mBorderWidth，那么就能保證繪制填充角度時，不會把邊界覆蓋。

至此，動畫的效果便完成了。

目標點的加入

首先，前兩點已經能滿足大多的雷達掃描需求了。這里這個添加目標點（target）純粹是我自己想加入的功能，因為覺得可以結合地圖sdk的MapView來共同使用，目前也只是開發階段，擴展性可能考慮得還不是特別充足，也還沒應用到具體項目中。但是，總覺得自己想的功能也該試著去實踐一下~

這里主要運用的圓的計算公式：

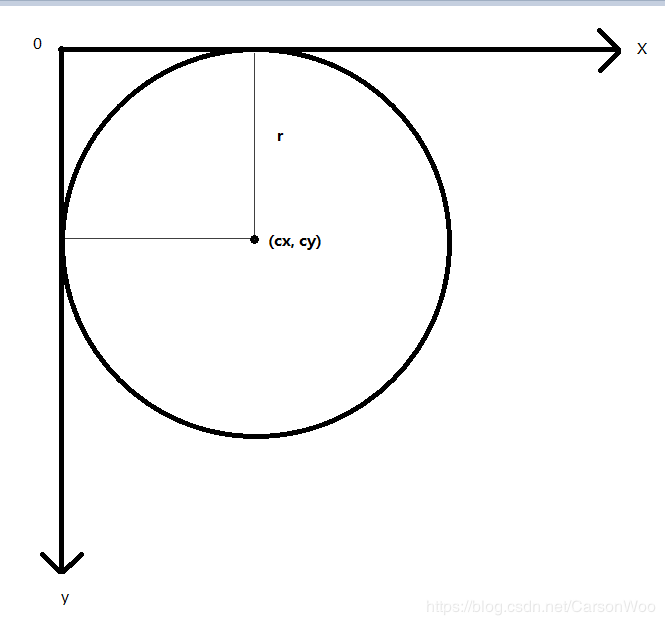

由于Android的坐標系的原點是在左上角，y軸過頂點向下延伸。由我們的繪制可知，此繪制圖像在坐標系中的位置大概如下圖所示：

那么，對應的公式就為：

要注意的是，這里r的計算會根據圖/點的設置來動態計算，具體例子通過代碼來進行分析。

// 隨機落點fun addTarget(size: Int, type: TYPE = TYPE.RANDOM) { val list = ArrayList<PointF>() val r = measuredWidth.toFloat() / 2 val innerRect = Rect((r - r / mScaleFactor).toInt(), (r - r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt()) // 圓的中心點 val circle = PointF(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2) while (list.size < size) { val ranX = Random.nextDouble(0.0, r * 2.0).toFloat() val ranY = Random.nextDouble(0.0, r * 2.0).toFloat() val ranPointF = PointF(ranX, ranY) if (innerRect.contains(ranPointF.toPoint())) { continue } // 圓公式 if (!mNeedBitmap && (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) < (r - mTargetRadius - mBorderWidth).toDouble().pow(2.0)) { // 普通點 addTargetFromType(type, list, ranX, ranY, r, ranPointF) } else if (mNeedBitmap && (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) < (r - mBorderWidth - max(mBitmap.width, mBitmap.height) / 2).toDouble().pow(2)) { // 圖 addTargetFromType(type, list, ranX, ranY, r, ranPointF) } else { continue } } mTargetList = list for (target in list) { Log.i('RadarView', 'target = [${target.x}, ${target.y}]') } invalidate()}

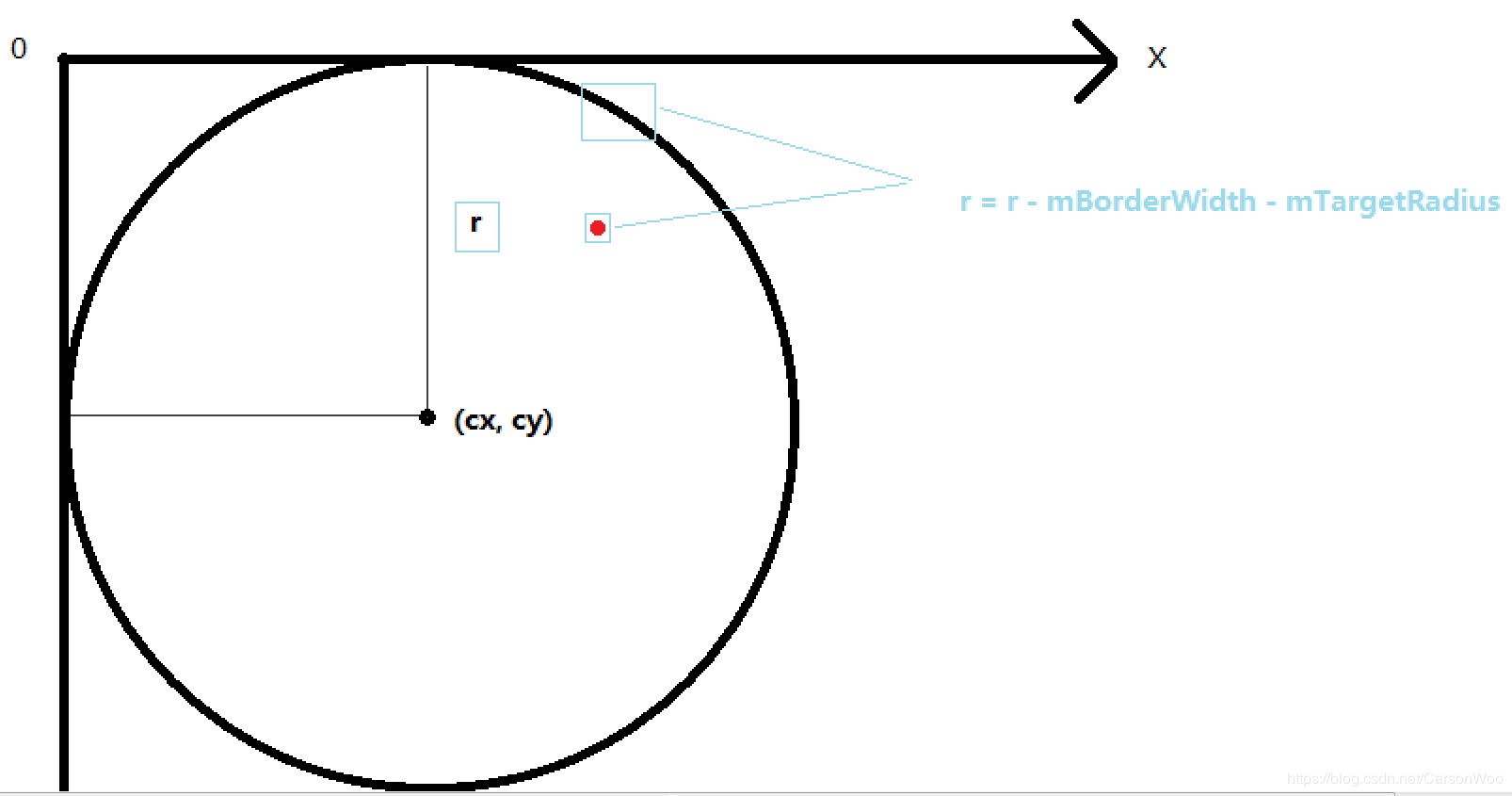

可以看到，當target為普通點時，r的計算還要減去targetRadius，即目標點的半徑，同時還要減去邊界的寬度，如圖所示：

當target為圖時，由于寬高不定，故除了邊界外，還要減去大的邊，那么r的計算則為：

同時為了避免圖片的尺寸過大，這里同樣采取了一個默認值與一個縮放因子，從而保證圖的完整性以及避免過大而引起的視覺丑化。

關于落點的位置，目前采取的是隨機落點，如果應用到地圖掃點的話，可以通過地圖sdk內的距離計算工具再與RadarView的坐標做一個比例轉換，從而達到雷達內顯示該點具體方位。

關于落點的分布，目前提供了5種類型：分別是全象限隨機、第一象限、第二象限、第三象限與第四象限隨機。

Github

若須直接調用，可移步至 https://github.com/CarsonWoo/RadarView

完整代碼

class RadarView : View { enum class TYPE { RANDOM, FIRST, SECOND, THIRD, FOURTH } private val mPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) } private val mSweepPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) } private val mOutlinePaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) } private val mTargetPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) } private val mDefaultSize = 120// px // limit the size of bitmap private var mBitmapMaxSize = 0F private var mBitmapWHRatio = 0F private val mScaleFactor = 30F private var mStartAngle = 0F private val mSweepAngle = -60F private var mScanColors: IntArray? = null private val mDefaultScanColors = intArrayOf(Color.parseColor('#0F7F7F7F'), Color.parseColor('#7F7F7F7F'), Color.parseColor('#857F7F7F')) private val mDefaultBackgroundColor = Color.WHITE private var mBackgroundColor: Int = mDefaultBackgroundColor private var mBorderColor: Int = Color.BLACK private var mBorderWidth = 0F private var mTargetColor: Int = Color.RED private var mTargetRadius = 10F private lateinit var mOutlineRect: Rect private val mAnimator = ValueAnimator.ofFloat(0F, 360F) private var mTargetList: ArrayList<PointF>? = null private var mIsAnimating = false private var mNeedBitmap = false private var mBitmap = BitmapFactory.decodeResource(resources, R.mipmap.ic_launcher) constructor(context: Context): this(context, null) constructor(context: Context, attributeSet: AttributeSet?) : super(context, attributeSet) init { mPaint.color = Color.GRAY mPaint.strokeWidth = 10F mPaint.style = Paint.Style.FILL_AND_STROKE mPaint.strokeJoin = Paint.Join.ROUND mPaint.strokeCap = Paint.Cap.ROUND mSweepPaint.style = Paint.Style.FILL mOutlinePaint.style = Paint.Style.FILL_AND_STROKE mOutlinePaint.color = mBackgroundColor mTargetPaint.style = Paint.Style.FILL mTargetPaint.color = mTargetColor mTargetPaint.strokeWidth = 10F } override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) { super.onMeasure(widthMeasureSpec, heightMeasureSpec) val vWidth = measureDimension(widthMeasureSpec) val vHeight = measureDimension(heightMeasureSpec) val size = min(vWidth, vHeight) setShader(size) setMeasuredDimension(size, size) setParamUpdate() } override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) { // 設置默認居中 var l = left var r = right var t = top var b = bottom when { width > height -> { // 寬度比高度大 那么要設置默認居中就得把left往右移 right往左移 l = (width - measuredWidth) / 2 r = width - l layout(l, t, r, b) } height > width -> { // 高度比寬度大 那么要設置默認居中就得把top往下移 bottom往上移 t = (height - measuredHeight) / 2 b = height - t layout(l, t, r, b) } else -> super.onLayout(changed, left, top, right, bottom) } } private fun setShader(size: Int) { val shader = SweepGradient(size.toFloat() / 2, size.toFloat() / 2, mScanColors?: mDefaultScanColors, floatArrayOf(0F, 0.5F, 1F)) val matrix = Matrix() matrix.setRotate(-90F, size.toFloat() / 2, size.toFloat() / 2) shader.setLocalMatrix(matrix) mSweepPaint.shader = shader } fun setScanColors(colors: IntArray) { this.mScanColors = colors setShader(measuredWidth) invalidate() } fun setRadarColor(@ColorInt color: Int) { this.mBackgroundColor = color this.mOutlinePaint.color = color invalidate() } fun setRadarColor(colorString: String) { if (!colorString.startsWith('#') || colorString.length != 7 || colorString.length != 9) { Log.e('RadarView', 'colorString parse error, please check your enter param') return } val color = Color.parseColor(colorString) setRadarColor(color) } fun setBorderColor(@ColorInt color: Int) { this.mBorderColor = color invalidate() } fun setBorderColor(colorString: String) { if (!colorString.startsWith('#') || colorString.length != 7 || colorString.length != 9) { Log.e('RadarView', 'colorString parse error, please check your enter param') return } val color = Color.parseColor(colorString) setBorderColor(color) } fun setRadarGradientColor(colors: IntArray) { val shader = SweepGradient(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, colors, null) mOutlinePaint.shader = shader invalidate() } fun setBorderWidth(width: Float) { this.mBorderWidth = width invalidate() } private fun setParamUpdate() { mOutlineRect = Rect(0, 0, measuredWidth, measuredHeight) mBitmapMaxSize = measuredWidth.toFloat() / mScaleFactor } private fun measureDimension(spec: Int) = when (MeasureSpec.getMode(spec)) { MeasureSpec.EXACTLY -> { // exactly number or match_parent MeasureSpec.getSize(spec) } MeasureSpec.AT_MOST -> { // wrap_content min(mDefaultSize, MeasureSpec.getSize(spec)) } else -> { mDefaultSize } } override fun setBackground(background: Drawable?) { // 取消傳統背景設置// super.setBackground(background) } override fun onDraw(canvas: Canvas?) { super.onDraw(canvas) // draw outside circle (background) canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2, mOutlinePaint) if (mBorderWidth > 0F && mOutlinePaint.shader == null) { drawBorder(canvas) } canvas?.drawArc(mOutlineRect.toRectF(), mStartAngle, mSweepAngle, true, mSweepPaint) if (!mTargetList.isNullOrEmpty() && !mIsAnimating) { drawTarget(canvas) } // draw center circle canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2 / mScaleFactor, mPaint) } private fun drawBorder(canvas: Canvas?) { Log.i('RadarView', 'drawBorder') mOutlinePaint.style = Paint.Style.STROKE mOutlinePaint.color = mBorderColor mOutlinePaint.strokeWidth = mBorderWidth canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, (measuredWidth.toFloat() - mBorderWidth) / 2, mOutlinePaint) // 還原 mOutlinePaint.style = Paint.Style.FILL_AND_STROKE mOutlinePaint.color = mBackgroundColor } private fun drawTarget(canvas: Canvas?) { mTargetList?.let { Log.e('RadarView', 'draw target') for (target in it) { if (mNeedBitmap) { canvas?.drawBitmap(mBitmap, target.x - mBitmap.width / 2, target.y - mBitmap.height / 2, mTargetPaint) } else { canvas?.drawCircle(target.x, target.y, mTargetRadius, mTargetPaint) } } } } fun setBitmapEnabled(enabled: Boolean, drawable: Drawable) { // 這里是為了防止界面還未獲取到寬高時 會導致onMeasure走不到 那么maxSize就會為0 post { this.mNeedBitmap = enabled this.mBitmapWHRatio = drawable.intrinsicWidth.toFloat() / drawable.intrinsicHeight.toFloat() mBitmap = if (mBitmapWHRatio >= 1) { // 寬比高大 drawable.toBitmap( width = min(mBitmapMaxSize, drawable.intrinsicWidth.toFloat()).toInt(), height = (min(mBitmapMaxSize, drawable.intrinsicWidth.toFloat()) / mBitmapWHRatio).toInt(), config = Bitmap.Config.ARGB_8888) } else { // 高比寬大 drawable.toBitmap( height = min(mBitmapMaxSize, drawable.intrinsicHeight.toFloat()).toInt(), width = (min(mBitmapMaxSize, drawable.intrinsicHeight.toFloat()) * mBitmapWHRatio).toInt(), config = Bitmap.Config.ARGB_8888 ) } } } // 隨機落點 fun addTarget(size: Int, type: TYPE = TYPE.RANDOM) { val list = ArrayList<PointF>() val r = measuredWidth.toFloat() / 2 val innerRect = Rect((r - r / mScaleFactor).toInt(), (r - r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt()) // 圓的中心點 val circle = PointF(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2) while (list.size < size) { val ranX = Random.nextDouble(0.0, r * 2.0).toFloat() val ranY = Random.nextDouble(0.0, r * 2.0).toFloat() val ranPointF = PointF(ranX, ranY) if (innerRect.contains(ranPointF.toPoint())) { continue } // 圓公式 if (!mNeedBitmap && (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) < (r - mTargetRadius - mBorderWidth).toDouble().pow(2.0)) { // 在圓內 addTargetFromType(type, list, ranX, ranY, r, ranPointF) } else if (mNeedBitmap && (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) < (r - mBorderWidth - max(mBitmap.width, mBitmap.height) / 2).toDouble().pow(2)) { addTargetFromType(type, list, ranX, ranY, r, ranPointF) } else { continue } } mTargetList = list for (target in list) { Log.i('RadarView', 'target = [${target.x}, ${target.y}]') } invalidate() } private fun addTargetFromType(type: TYPE, list: ArrayList<PointF>, ranX: Float, ranY: Float, r: Float, ranPointF: PointF) { when (type) { TYPE.RANDOM -> { list.add(ranPointF) } TYPE.FOURTH -> { if (ranX in r.toDouble()..2 * r.toDouble() && ranY in r.toDouble()..2 * r.toDouble()) { list.add(ranPointF) } } TYPE.THIRD -> { if (ranX in 0.0..r.toDouble() && ranY in r.toDouble()..2 * r.toDouble()) { list.add(ranPointF) } } TYPE.SECOND -> { if (ranX in 0.0..r.toDouble() && ranY in 0.0..r.toDouble()) { list.add(ranPointF) } } TYPE.FIRST -> { if (ranX in r.toDouble()..2 * r.toDouble() && ranY in 0.0..r.toDouble()) { list.add(ranPointF) } } } } fun start() { Log.i('RadarView', 'animation start') mIsAnimating = true mAnimator.duration = 2000 mAnimator.repeatCount = ValueAnimator.INFINITE mAnimator.addUpdateListener { val angle = it.animatedValue as Float mStartAngle = angle Log.i('RadarView', 'mStartAngle = $mStartAngle and curValue = ${it.animatedValue}') postInvalidate() } mAnimator.start() } fun start(startVal: Float, endVal: Float) { mIsAnimating = true mAnimator.setFloatValues(startVal, endVal) mAnimator.duration = 2000 mAnimator.repeatCount = ValueAnimator.INFINITE mAnimator.addUpdateListener { mStartAngle = it.animatedValue as Float Log.i('RadarView', 'mStartAngle = $mStartAngle and curValue = ${it.animatedValue}') postInvalidate() } mAnimator.start() } fun stop() { mIsAnimating = false if (mAnimator.isRunning) { mAnimator.cancel() mAnimator.removeAllListeners() } mStartAngle = 0F } }

調用方式

override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContentView(R.layout.activity_main) radar_view.setBorderWidth(5F) radar_view.setRadarColor(Color.TRANSPARENT) radar_view.setBitmapEnabled(true, resources.getDrawable(R.mipmap.ic_launcher_round))// radar_view.setScanColors(intArrayOf(Color.RED, Color.LTGRAY, Color.CYAN))// radar_view.setRadarGradientColor(intArrayOf(Color.RED, Color.GREEN, Color.BLUE)) btn_start.setOnClickListener { radar_view.start()// workThreadAndCallback() } btn_stop.setOnClickListener { radar_view.stop() radar_view.addTarget(7) }}

總結
